Seat

To remove the seat

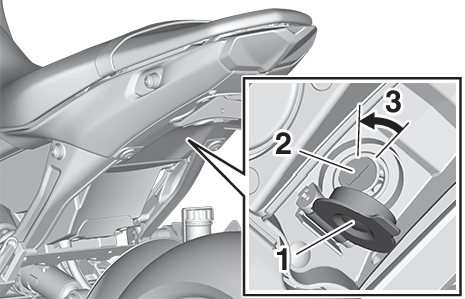

  1. Open the seat lock cover, insert the key into the seat lock, and then turn the key counterclockwise.

    1. Seat lock cover
    2. Seat lock
    3. Unlock.

  2. While holding the key in that position, slide the seat backward and then lift the rear of the seat up, and then pull the seat off.

To install the seat

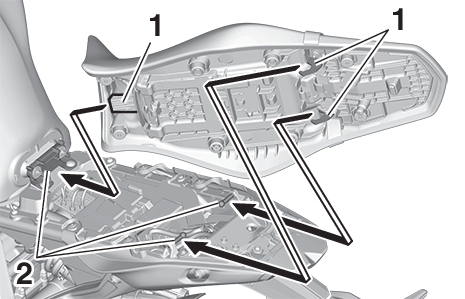

  1. Insert the projections into the seat holders as shown.

    1. Projection
    2. Seat holder

  2. Push the rear of the seat down to lock it in place.

  3. Remove the key.

    Make sure that the seat is properly secured before riding.
