Seats

Passenger seat
To remove the passenger seat

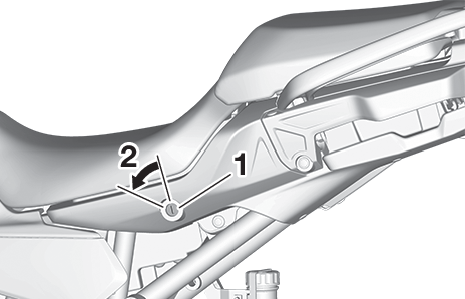

  1. Insert the key into the seat lock, and then turn it counterclockwise.

    1. Seat lock
    2. Unlock.

  2. Lift the front of the passenger seat and pull it forward.

To install the passenger seat

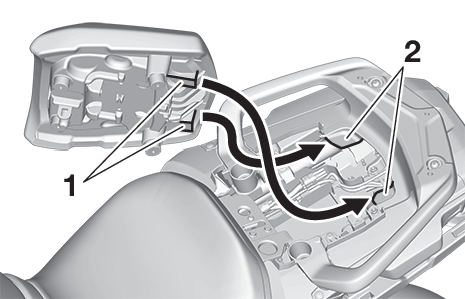

  1. Insert the projections on the rear of the passenger seat into the seat holders as shown, and then push the front of the seat down to lock it in place.

    1. Projection
    2. Seat holder

  2. Remove the key.

Rider seat
To remove the rider seat

  1. Remove the passenger seat.

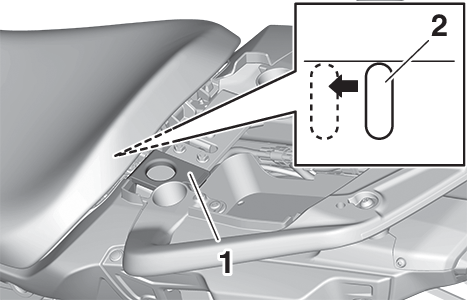

  2. Remove the cap, then push the rider seat lock lever, located under the back of the rider seat, to the left as shown, and then pull the seat off.

    1. Cap
    2. Rider seat lock lever
To install the rider seat

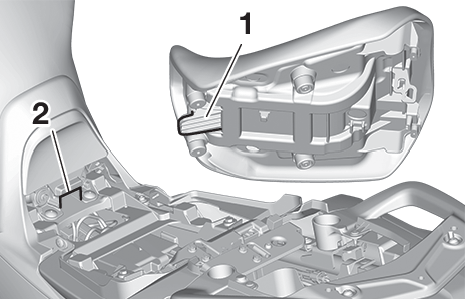

  1. Insert the projection on the front of the rider seat into the seat holder as shown, and then push the rear of the seat down to lock it in place.

    1. Projection
    2. Seat holder

  2. Install the cap.

    1. Cap

  3. Install the passenger seat.

    • Make sure that the seats are properly secured before riding.
    • The rider seat height can be adjusted. See the following section.
