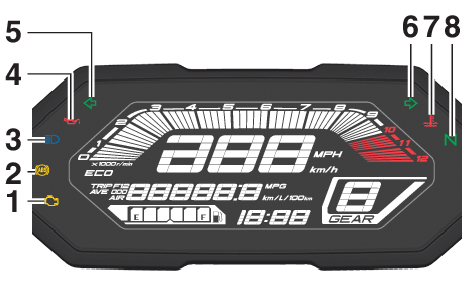

Indicator lights and warning lights

  1. Engine trouble warning light “SBL00674.png”
  2. ABS warning light “SBL00675.png”
  3. High beam indicator light “SBL00678.png”
  4. Oil pressure warning light “SBL00843.png”
  5. Left turn signal indicator light “SBL00676.png”
  6. Right turn signal indicator light “SBL00677.png”
  7. Coolant temperature warning light “SBL00662.png”
  8. Neutral indicator light “SBL00844.png”

Turn signal indicator lights “SBL00676.png” and “SBL00677.png”

Each indicator light will flash when its corresponding turn signal lights are flashing.

Neutral indicator light “SBL00844.png”

This indicator light comes on when the transmission is in the neutral position.

High beam indicator light “SBL00678.png”

This indicator light comes on when the high beam of the headlight is switched on.

Oil pressure warning light “SBL00843.png”

This warning light comes on if the engine oil pressure is low.

When the vehicle is turned on, the light should come on, go off briefly, and then remain on until the engine is started. Otherwise, have a Yamaha dealer check the vehicle.

If the warning light comes on when the engine is running, stop the engine and check the oil level. If the oil level is low, add sufficient oil of the recommended type. If the warning light remains on after adding oil, stop the engine and have a Yamaha dealer check the vehicle.

Coolant temperature warning light “SBL00662.png”

This warning light comes on when the engine is overheating. If this occurs, stop the engine immediately and allow the engine to cool.

For vehicles with a radiator fan, the radiator fan(s) automatically switch on or off according to the coolant temperature.

When the vehicle is turned on, the light will come on for a few seconds, and then go off. If the light does not come on, or if the light remains on, have a Yamaha dealer check the vehicle.

Do not continue to operate the engine if it is overheating.

Engine trouble warning light “SBL00674.png”

This warning light comes on if a problem is detected in the engine or other vehicle control system. If this occurs, have a Yamaha dealer check the on-board diagnostic system.

When the vehicle is turned on, this light should come on for a few seconds and then go off. Otherwise, have a Yamaha dealer check vehicle.

ABS warning light “SBL00675.png”

This warning light comes on when the vehicle is first turned on, and goes off after starting riding. If the warning light comes on while riding, the anti-lock brake system may not work correctly.

If the ABS warning light does not turn off after reaching 10 km/h (6 mi/h), or if the warning light comes on while riding:

  • Use extra caution to avoid possible wheel lock during emergency braking.
  • Have a Yamaha dealer check the vehicle as soon as possible.
