Replacing the fuses

The main fuse and the fuse boxes, which contain the fuses for the individual circuits, are located under the rider seat.

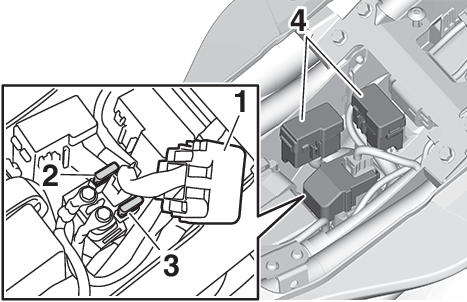

To access the main fuse, remove the starter relay cover as shown.

  1. Starter relay cover
  2. Main fuse
  3. Spare main fuse
  4. Fuse box

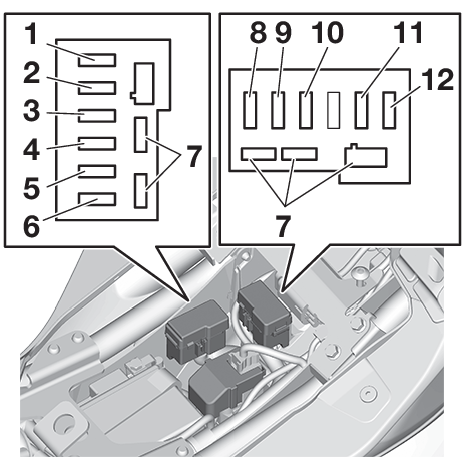

  1. Radiator fan motor fuse
  2. Backup fuse (for clock)
  3. Fuel injection system fuse
  4. Headlight fuse
  5. Signaling system fuse
  6. Ignition fuse
  7. Spare fuse
  8. ABS solenoid fuse
  9. ABS motor fuse
  10. Accessory fuse
  11. ABS ECU fuse
  12. Terminal fuse 1

If a fuse is blown, replace it as follows.

  1. Turn the key to “OFF” and turn off the electrical circuit in question.

  2. Remove the blown fuse, and then install a new fuse of the specified amperage. WARNING! Do not use a fuse of a higher amperage rating than recommended to avoid causing extensive damage to the electrical system and possibly a fire.

    Specified fuses:
    Main fuse:
    30.0 A
    Terminal fuse 1:
    3.0 A
    Headlight fuse:
    7.5 A
    Signaling system fuse:
    7.5 A
    Ignition fuse:
    10.0 A
    Radiator fan motor fuse:
    10.0 A
    ABS motor fuse:
    30.0 A
    ABS solenoid fuse:
    20.0 A
    ABS ECU fuse:
    7.5 A
    Fuel injection system fuse:
    10.0 A
    Backup fuse:
    7.5 A
    Accessory fuse:
    7.5 A

  3. Turn the key to “ON” and turn on the electrical circuit in question to check if the device operates.

  4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.
