ELECTRIC STARTER

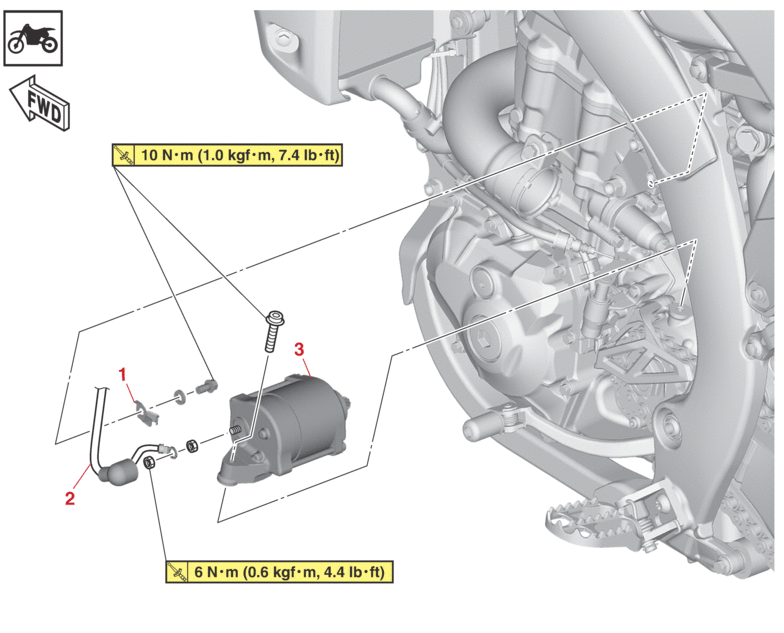

Removing the starter motor

Order

Job/Parts to remove

Q’ty

Remarks



Exhaust pipe



Refer to ENGINE REMOVAL.

1

Clamp

1



2

Starter motor lead

1

When removing or installing the installation nut of the starter motor lead, be sure to hold the nut on the starter motor side firmly in place using a spanner.

3

Starter motor

1

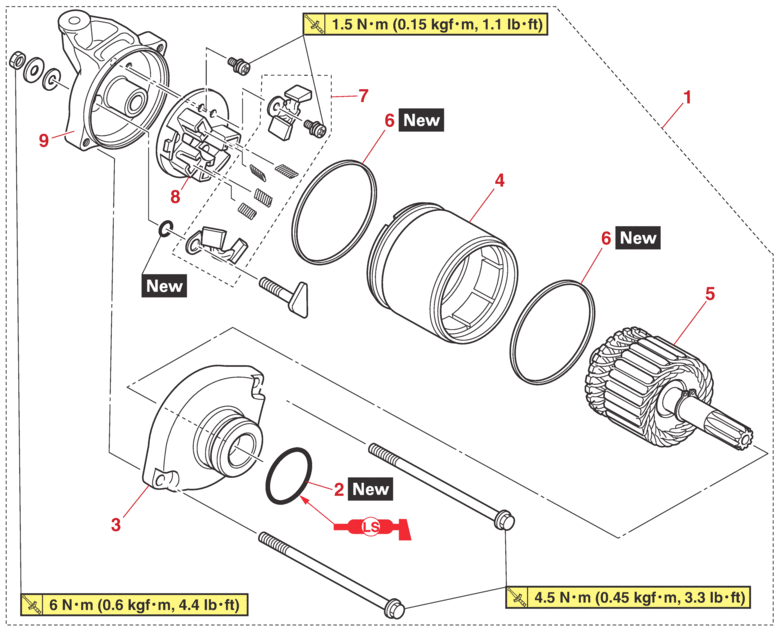

Disassembling the starter motor

Order

Job/Parts to remove

Q’ty

Remarks

1

Starter motor assembly

1



2

O-ring

1



3

Starter motor front cover

1



4

Starter motor yoke

1



5

Armature assembly

1



6

Gasket

2



7

Brush set

1



8

Brush holder

1



9

Starter motor rear cover

1



CHECKING THE STARTER MOTOR

1.Check:

  • Commutator

    Dirt → Clean with 600 grit sandpaper.

2.Measure:

  • Mica undercut “a”

    Out of specification → Scrape the mica to the proper measurement with a hacksaw blade that has been grounded to fit the commutator.

  • Mica undercut (depth)

    2.40 mm (0.09 in)

The mica of the commutator must be undercut to ensure proper operation of the commutator.

3.Check:

  • Armature assembly

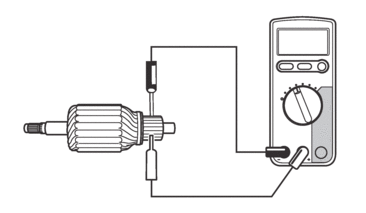

a.Connect the digital circuit tester to the armature coil and check the continuity.

  • Digital circuit tester (CD732)

    90890-03243

  • Model 88 Multimeter with tachometer

    YU-A1927

b.If there is no continuity, replace the starter motor.

4.Measure:

  • Brush length “a”

    Out of specification → Replace the brush set.

  • Brush overall length limit

    5.5 mm (0.22 in)

5.Measure:

  • Brush spring force

    Out of specification → Replace the brush set.

  • Brush spring force

    4.80–7.20 N (489–734 gf, 17.28–25.92 oz)

6.Check:

  • Gear teeth

    Damage/wear → Replace the starter motor.

7.Check:

  • Oil seal

    Damage/wear → Replace the defective part(s).

ASSEMBLING THE STARTER MOTOR

1.Install:

  • Brush spring “1”

  • Brush “2”

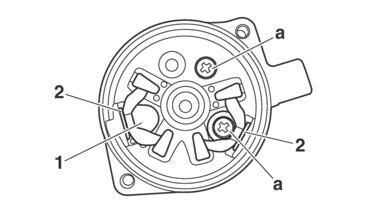

Install the brush holder using the screws “a”.

2.Install:

  • Starter motor rear cover “1”

  • O-ring

  • Starter motor yoke “2”

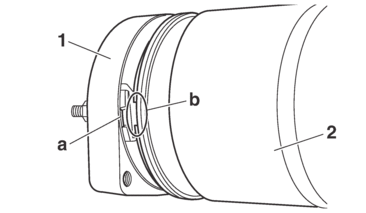

Install the starter motor rear cover with its projection “a” facing the groove “b” of the starter motor yoke.

3.Install:

  • Circlip

  • Plain washer

  • O-ring

  • Washer (starter motor front cover)

  • Starter motor front cover “1”

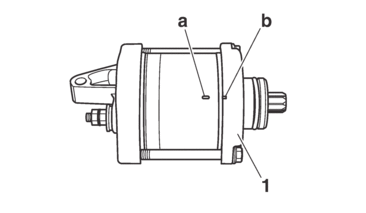

Align the match mark “a” on the starter motor yoke with the match mark “b” on the starter motor front cover.

4.Install:

  • Bolt

  • O-ring

Apply the lithium-soap-based grease on the O-ring.

5.Install:

  • Starter motor

  • Starter motor bolt

  • Starter motor bolt

    10 N·m (1.0 kgf·m, 7.4 lb·ft)
