Replacing the fuses

The main fuse and the fuse boxes are located under the seat.

To access the fuses

  1. Remove the seat.

  2. Remove the seat holder by removing the bolts.

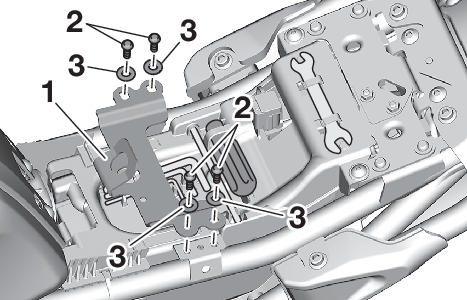

    1. Seat holder
    2. Bolt
    3. Washer

  3. Remove the diagnostic connector by pulling it upward.

  4. Remove the battery cover by removing the bolts.

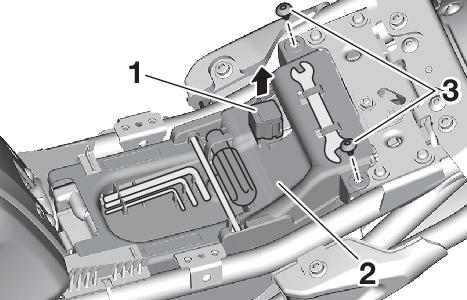

    1. Diagnostic connector
    2. Battery cover
    3. Bolt

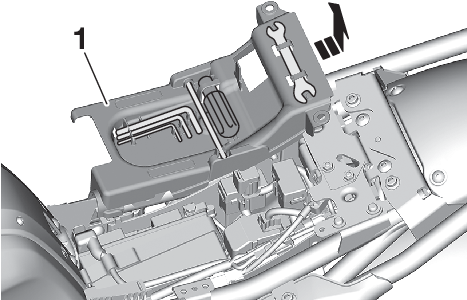

    1. Battery cover

To access the main fuse, remove the starter relay cover as shown.

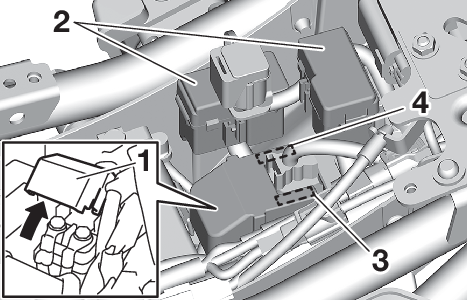

  1. Starter relay cover
  2. Fuse box
  3. Spare main fuse
  4. Main fuse

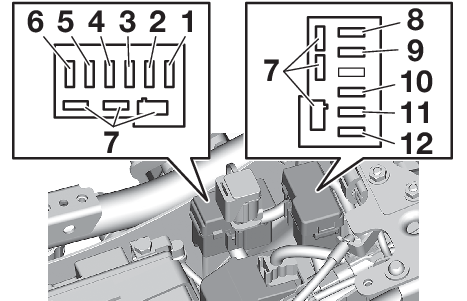

  1. Radiator fan motor fuse
  2. Backup fuse (for clock)
  3. Fuel injection system fuse
  4. Headlight fuse
  5. Signaling system fuse
  6. Ignition fuse
  7. Spare fuse
  8. ABS solenoid fuse
  9. ABS motor fuse
  10. Accessory fuse
  11. Auxiliary fuse
  12. ABS ECU fuse

If a fuse is blown, replace it as follows.

  1. Turn the main switch off and turn off the electrical circuit in question.

  2. Remove the blown fuse, and then install a new fuse of the specified amperage. WARNING! Do not use a fuse of a higher amperage rating than recommended to avoid causing extensive damage to the electrical system and possibly a fire.

    Specified fuses:
    Main fuse:
    30.0 A
    Accessory fuse:
    7.5 A
    Auxiliary fuse:
    3.0 A
    Headlight fuse:
    7.5 A
    Signaling system fuse:
    7.5 A
    Ignition fuse:
    10.0 A
    Radiator fan motor fuse:
    10.0 A
    ABS motor fuse:
    30.0 A
    ABS solenoid fuse:
    20.0 A
    ABS ECU fuse:
    7.5 A
    Fuel injection system fuse:
    10.0 A
    Backup fuse:
    7.5 A

  3. Turn the main switch on and turn on the electrical circuit in question to check if the device operates.

  4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.

  5. After the fuse is changed, place the battery cover in the original position, and then install the bolts.

  6. Install the diagnostic connector by pushing it downward.

  7. Install the seat holder by installing the bolts, and then tighten the bolts to the specified torque.

    Tightening torque:
    Seat holder bolts:
    7 N·m (0.7 kgf·m, 5.2 lb·ft)

  8. Install the seat.
