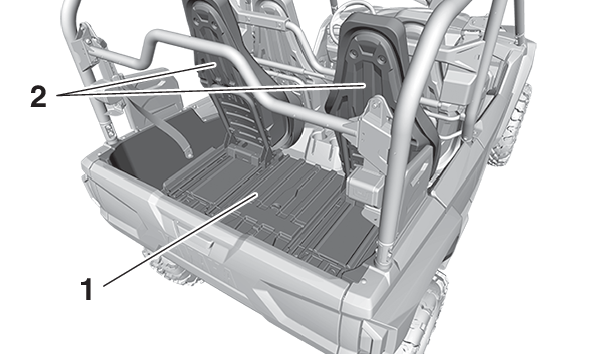

Cargo bed

The rear passenger seats fold up and slide forward.

  1. Cargo bed
  2. Folded rear seat
  • Never carry passengers in the cargo bed.
  • Do not exceed the specified maximum load limits. Heavier cargo could cause loss of control because of improper weight balance.
Cargo area maximum load: 272.0 kg (600 lb)
(Total weight of rear passengers and cargo)

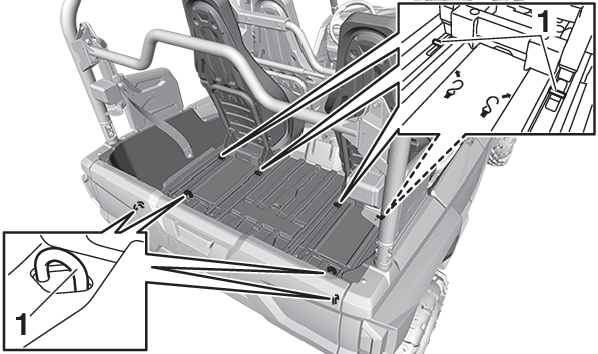

Use the cargo hooks to tie down loads. (See page for precaution information.)

  1. Cargo hook
Moving a rear seat forward

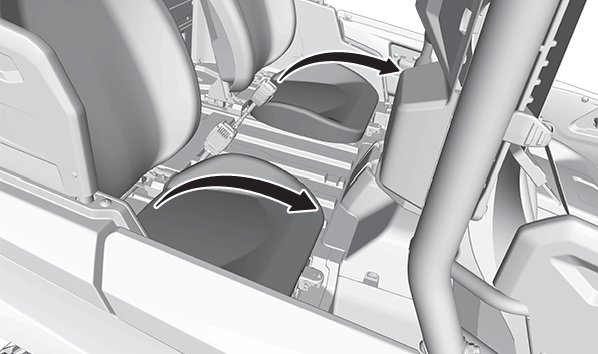

  1. Pull the rear of the seat cushion to lift it up.

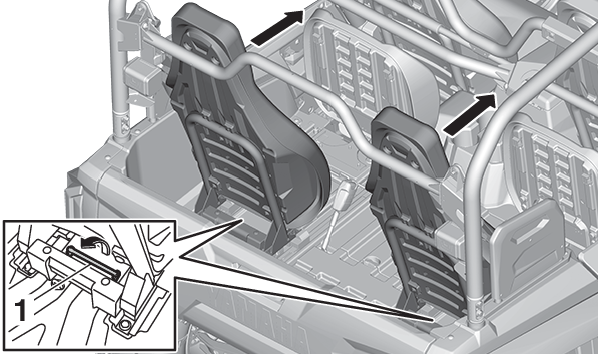

  2. While pulling the seat lock lever, slide the seat forward completely until it locks in place.

    1. Seat lock lever

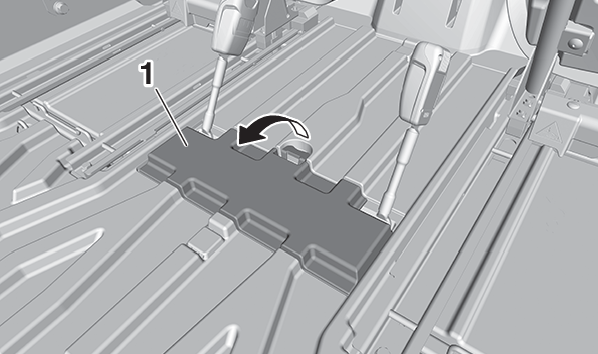

  3. Remove the seat belt buckle storage compartment cover and place the buckles in the compartment.

    1. Seat belt buckle storage compartment cover
    1. Buckle

  4. Install the seat belt buckle storage compartment cover.

Moving a rear seat to its original position

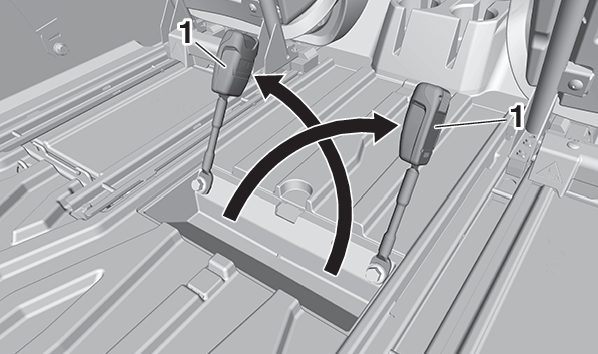

  1. Open the seat belt buckle storage compartment cover and lift up the seat belt buckles.

    1. Buckle

  2. Install the seat belt buckle storage compartment cover.

  3. While pulling the seat lock lever, slide the seat rearward completely until it locks in place.

  4. Place the seat cushion in its original position.

Opening and closing the tailgate
  1. Tailgate
  2. Latch

The tailgate is not designed to hold heavy loads when open. The tailgate could collapse if you put heavy cargo or sit on it.

To open

  1. Pull the latch, and then lower the tailgate.

To close

  1. Lift the tailgate to the original position, and then push the tailgate to securely lock it in place.
