INSTRUMENT AND CONTROL FUNCTIONS

ENGINE STOP SWITCH

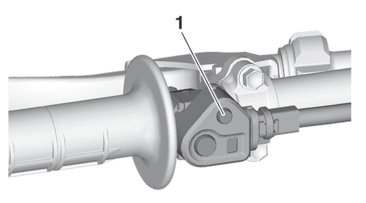

The engine stop switch “1” is located on the left handlebar. Continue pushing the engine stop switch till the engine comes to a stop.

START SWITCH

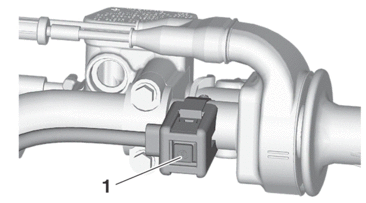

The start switch “1” is located on the right handlebar. Push this switch to crank the engine with the starter.

  • When the start switch is pushed, the indicator light on the handlebar switch (left) may illuminate orange for approx. 2 seconds as a self-check, but this is not a malfunction.

  • Indicator light on the handlebar switch (left) flashes orange → Check or replace any faulty electrical part(s).

    Refer to CHECKING THE INDICATOR LIGHT.

LAUNCH CONTROL SYSTEM

When the launch control system is operated, the ignition timing is delayed to reduce slipping at the rear wheel which occurs when the vehicle accelerates from a stationary position.

This can be used to starting off in a stable manner on a slippery road surface.

However, the effect may not be adequate depending on the rider’s operations and road surface conditions.

How to operate

1.Put the gear into the neutral position.

2.Start the engine.

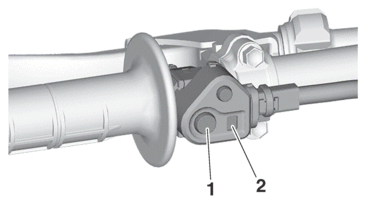

3.Push the mode switch “1” for more than one second to turn on the launch control system.

  • When the launch control system is turned on, it automatically enters Rev. clip mode, and then the indicator light “2” will flash.

  • The drive mode can be changed even when the launch control system is operating.

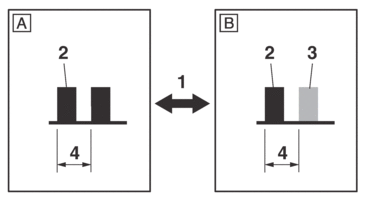

  • When the indicator light flashes alternately purple and blue, drive mode 2 is selected.

A.

Drive mode 1

B.

Drive mode 2

3.

Push the mode switch

4.

Purple

5.

Blue

6.

Approx. 1 second (4 flashes/second)

4.Put the gear into the 1st or 2nd gear for starting off.

  • When starting off, the system automatically controls the launch.

  • The drive mode can be changed even when the launch control system is operating.

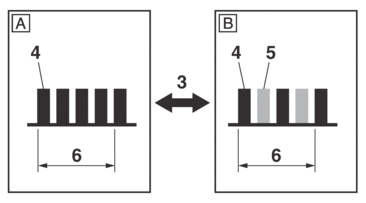

  • When the indicator light flashes alternately purple and blue, drive mode 2 is selected.

A.

Drive mode 1

B.

Drive mode 2

1.

Push the mode switch

2.

Purple

3.

Blue

4.

1 second (1 flash/second)

5.After starting off, the launch control system will turn off automatically when the gear is shifted into the 3rd gear.

The launch control system will also turn off when the engine is stopped or the gear is shifted into the 3rd gear or higher.

  • When the launch control system is turned off, the indicator light “2” will stop flashing.

  • Indicator light on the handlebar switch (left) flashes orange → Check or replace any faulty electrical part(s).

    Refer to CHECKING THE INDICATOR LIGHT.

LAP TIME RECORD MODE

Lap time records can be measured by activating from the Power Tuner app.

Push the mode switch “1” to start or stop measuring.

  • The indicator light “2” flashes blue while the lap time record mode is on.

  • Drive mode cannot be changed while in lap time record mode.

  • Measurement results can be received and saved on the app.

DRIVE MODE

Push the mode switch “1” to change between drive mode 1 and drive mode 2.

Indicator light on the handlebar switch (left) flashes orange → Check or replace any faulty electrical part(s).

Refer to CHECKING THE INDICATOR LIGHT.

To change the drive mode

1.Shift to neutral.

2.Start the engine.

3.Push the mode switch “1”.

As shipped from the factory, drive modes 1 and 2 are the same. You must use the Power Tuner app to adjust the map settings.

When the indicator light “2” illuminates blue, drive mode 2 is selected.

SHIFT PEDAL

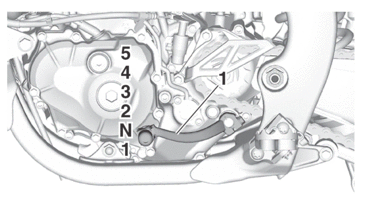

The shift pedal “1” has adopted a method of 1 down & 4 ups (press-down & kick-ups).

Press it down for N (neutral) to 1st, and kick it up for 2nd to 5th.

FRONT BRAKE LEVER

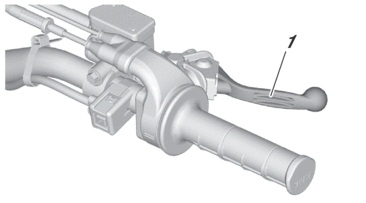

The front brake lever “1” is located on the right handlebar. Pull it toward the handlebar to activate the front brake.

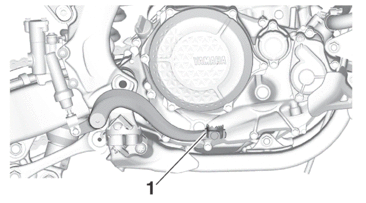

REAR BRAKE PEDAL

The rear brake pedal “1” is in the right of the chassis. Press down on the brake pedal to activate the rear brake.

STARTER KNOB

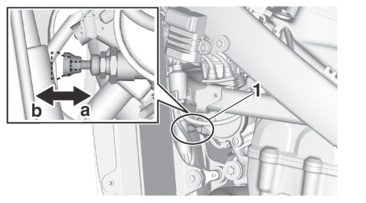

Starting a cold engine requires a larger amount of intake air, which is supplied by the starter knob “1”.

Pushing the knob toward “a” turns ON the starter, resulting in a larger angle of throttle valve.

When operating the throttle grip in the closing direction, the starter knob “1” moves in the direction “b” as shown and returns to its original position.

While handling the starter knob, take care not to burn yourself on exhaust pipes.

FUEL TANK CAP

Fuel tank cap is located under the sub-seat.

1.Loosen:

  • Quick fastener “1”

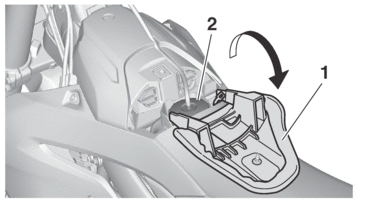

2.Remove the sub-seat “1” to open the fuel tank cap “2”.

  • When installing the sub-seat, make sure that the plastic band is not twisted.

  • When installing the sub-seat, push down the quick fastener, rotate it, and then secure the sub-seat with the quick fastener.
