Handlebar switches

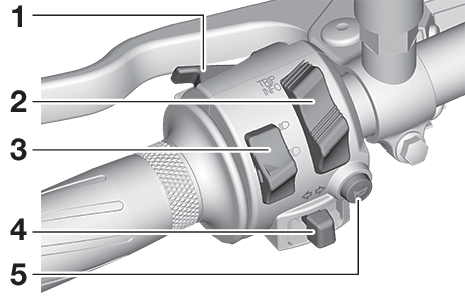

Left

  1. Pass switch “SBL00016.png”
  2. “TRIP/INFO” switch
  3. Dimmer switch “SBL00016.png/SBL00018.png”
  4. Turn signal switch “SBL00002.png/SBL00011.png”
  5. Horn switch “SBL00019.png”

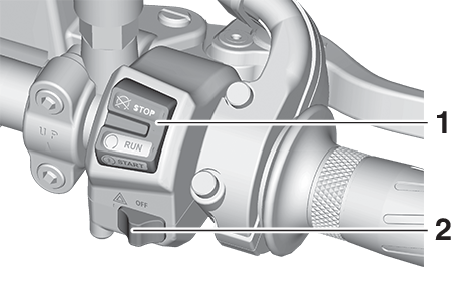

Right

  1. Stop/Run/Start switch “SBL00022.png/SBL00021.png/SBL00023.png”
  2. Hazard switch “OFF/SBL00020.png”

Pass switch “SBL00016.png”

Press this switch to flash the headlight.

When the dimmer switch is set to “SBL00016.png”, the passing switch has no effect.

Dimmer switch “SBL00016.png/SBL00018.png”

Set this switch to “SBL00016.png” for the high beam and to “SBL00018.png” for the low beam.

Turn signal switch “SBL00002.png/SBL00011.png”

To signal a right-hand turn, push this switch to “SBL00011.png”. To signal a left-hand turn, push this switch to “SBL00002.png”. When released, the switch returns to the center position. To cancel the turn signal lights, push the switch in after it has returned to the center position.

Horn switch “SBL00019.png”

Press this switch to sound the horn.

Stop/Run/Start switch “SBL00022.png/SBL00021.png/SBL00023.png”

To crank the engine with the starter, set this switch to “SBL00021.png”, and then push the switch down towards “SBL00023.png”. See page for starting instructions prior to starting the engine.

Set this switch to “SBL00022.png” to stop the engine in case of an emergency, such as when the vehicle overturns or when the throttle cable is stuck.

Hazard switch “OFF/SBL00020.png”

Use this switch to turn on the hazard lights (simultaneous flashing of all turn signal lights). The hazard lights are used in case of an emergency or to warn other drivers when your vehicle is stopped where it might be a traffic hazard.

The hazard lights can be turned on or off only when the key is in the “ON” position. You can turn the main switch to the “OFF” or “LOCK” position, and the hazard lights will continue to flash. To turn off the hazard lights, turn the main switch to the “ON” position and operate the hazard switch again.

Do not use the hazard lights for an extended length of time with the engine not running, otherwise the battery may discharge.

“TRIP/INFO” switch

This switch is used to make setting and display changes in the multi-function meter unit. See page for more information.

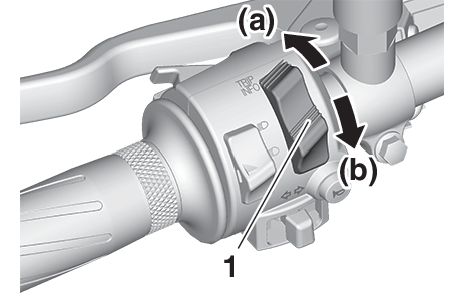

To use the “TRIP” switch, move the “TRIP/INFO” switch in direction (a). To use the “INFO” switch, move the “TRIP/INFO” switch in direction (b).

  1. “TRIP/INFO” switch
