IGNITION SYSTEM

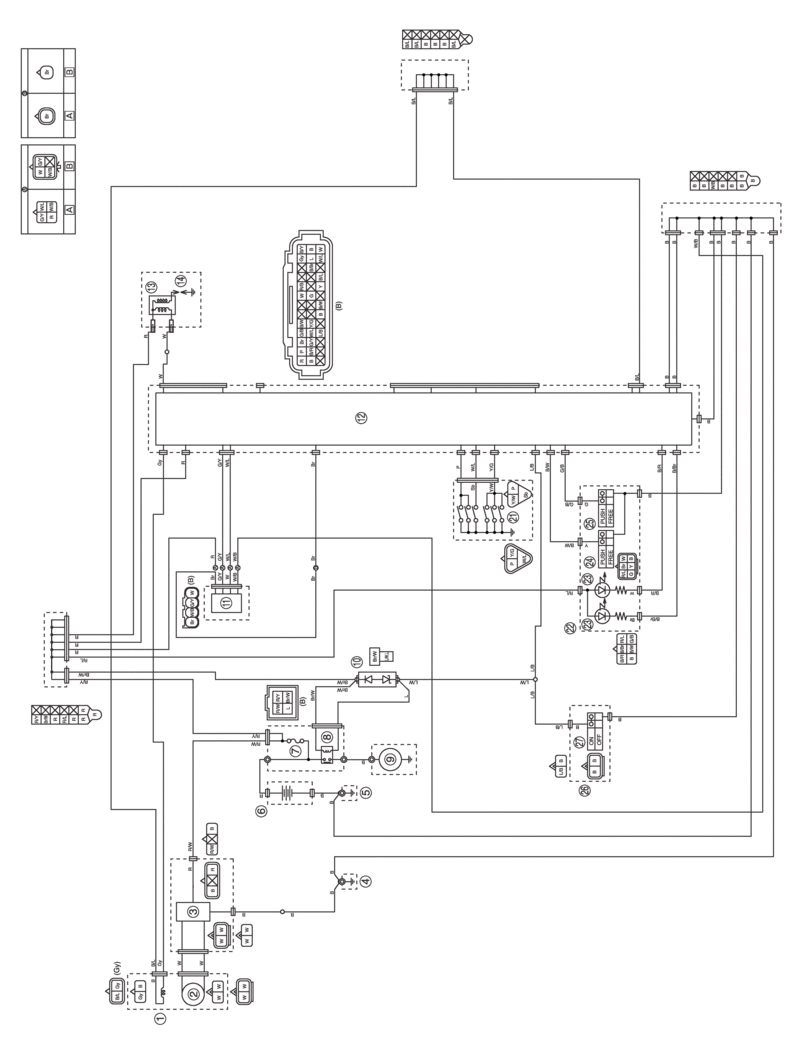

CIRCUIT DIAGRAM

1.	Crankshaft position sensor
2.	AC magneto
3.	Rectifier/regulator
4.	Engine ground
5.	Frame ground
6.	Battery
7.	Fuse
8.	Starter relay
9.	Starter motor
10.	Diode 1
11.	CCU (Communication Control Unit)
12.	ECU (Engine Control Unit)
13.	Ignition coil
14.	Spark plug
21.	Gear position switch
22.	Handlebar switch (left)
23.	Indicator light
24.	Mode switch
25.	Engine stop switch
26.	Handlebar switch (right)
27.	Start switch

A.	Wire harness
B.	CCU sub-lead

The ignition system fails to operate (no spark or intermittent spark).

Before troubleshooting, remove the following part(s):

Check the ignition system wire harness connections.	NG→	Reconnect.
OK↓
Check the fuse(s). Refer to CHECKING THE FUSES.	NG→	Replace the fuse(s).
OK↓
Check the battery. Refer to CHECKING AND CHARGING THE BATTERY.	NG→	Clean the battery terminals. Recharge or replace the battery.
OK↓
Check the spark plug. Refer to CHECKING THE SPARK PLUG.	NG→	Correct or replace the spark plug.
OK↓
Check the ignition spark gap. Refer to CHECKING THE IGNITION SPARK GAP.	OK→	The ignition system circuit is OK.
NG↓
Check the ignition coil. Refer to CHECKING THE IGNITION COIL.	NG→	Replace the ignition coil.
OK↓
Check the engine stop switch. Refer to CHECKING THE SWITCHES.	NG→	Replace the handlebar switch (left).
OK↓
Check the crankshaft position sensor. Refer to CHECKING THE CRANKSHAFT POSITION SENSOR.	NG→	Replace the crankshaft position sensor.
OK↓
Check the stator coil assembly. Refer to CHECKING THE STATOR COIL.	NG→	Replace the stator coil assembly.
OK↓
Check the ignition system wire harness. Refer to CIRCUIT DIAGRAM.	NG→	Repair or replace the wire harness.
OK↓
Replace the ECU.

The indicator light fail to blink.

Before troubleshooting, remove the following part(s):

Check the handlebar switch coupler (left) connections.	NG→	Reconnect.
OK↓
Check the gear position switch coupler connections.	NG→	Reconnect.
OK↓
Check the mode switch. Refer to CHECKING THE SWITCHES.	NG→	Replace the handlebar switch (left).
OK↓
Check the gear position switch. Refer to CHECKING THE GEAR POSITION SWITCH.	NG→	Replace the gear position switch.
OK↓
Check the fuel ignition system wire harness. Refer to CIRCUIT DIAGRAM.	NG→	Repair or replace the wire harness.
OK↓
Replace the ECU.

The indicator light to blink.

Before troubleshooting, remove the following part(s):

Check the handlebar switch coupler (left) connections.	NG→	Reconnect.
OK↓
Check the handlebar switch (left). Refer to CHECKING THE SWITCHES.	NG→	Replace the handlebar switch (left).
OK↓
Check the ignition system wire harness. Refer to CIRCUIT DIAGRAM.	NG→	Repair or replace the wire harness.
OK↓
Replace the ECU.
